Precision Digital Altimeter

with Motorola MPXS4100 A and PIC16F84

Table of Contents [Toc]

     So far...
   Technical Data of Wireless Transmitter and Receiver
Evaluation Board
   Initial Test Setup
   PCB Evaluation Board
   Schematics of Evaluation Board
   Available PIC Assembler Code
Further Information
   Sensor Ordering Information
   Other Circuits and Utilities
   Future Steps

Concept   [Toc] [Top]

The current concept incorporates a wireless transmitter and receiver and is thought to be used for remote controlled airplanes or appliances with two seperate parts. In other words, we have one dedicated transmitter (acquisition, filtering) and one dedicated receiver part (user-interface, look-up table, calibration, storage), capable of being connected together with any physical layer, e.g. wired, wireless, infrared. If you want to build a standalone altimeter/variometer just for hiking or mountaineering, this setup can obviously be simplified by omitting the wireless components.
So far, only the transmitter part with all its analog circuitry has been completed entirely - the digital receiver part has still to be done, but does not necessarily have to be a PIC microcontroller. For instance, it could also be a personal computer, connected through the standardized RS232 protocol and a wired/wireless interface to the transmitter part.

The (pending) challenge of the receiver implementation is the field evaluation of the most suitable and accurate temperature and non-linear pressure-altitude correction algorithms. There is maybe need for adding a temperature sensor to the transmitter part.

Transmitter   [Toc] [Top]

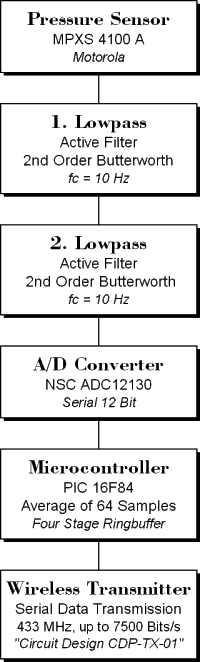

Schematic of Transmitter

Resolution   [Toc] [Top]

I reached 56 cm per unit, so the whole range is :

  • 2270 meters using a 12 bit A/D converter
  • 142 meters using an 8 bit A/D converter

Increase the range by taking a better A/D converter or decrease the Amplifier-Gain (reduction of resolution).

In practice, I'll set the resolution to 1 meter, so a total range of 4096 meters will be available. This is enough precise for my R/C models, but allows to use this altimeter also for hiking and mountaineering.

Note   [Toc] [Top]

The microcontroller builds an average value of 64 A/D samples to reduce any noise to a minimum.

So far ...   [Toc] [Top]

I've developed the following routines in PIC Assembler code:

  • RS 232 Interrupt handled interface for PICs without USART. I like a clean design, so I take an interrupt capable PIC microcontroller ! Although the PIC 16C73 has one USART, this routine is necessary because the USART is already used for the AD Converter and the EEPROM. Because the RS 232 interface is not used during data logging operation, the performance of the USART is completely present to the communication with the AD Converter.
  • Serial 4 Bit standard Dot-LCD interface
  • 8 Bit & 16 Bit binary to decimal conversion routine for LCD output.
  • NSC ADC12130 test interface with Auto-Calibration, Auto-Zero and Data-Fetch
  • Data Capture from an Excel Worksheet.

Documents   [Toc] [Top]

See related stuff at the document section below.


Receiver   [Toc] [Top]

Schematic of Receiver

Components   [Toc] [Top]

The following components have been used: Analog to digital converter NSC ADC12130, a Microchip PIC16F84 controller, a quad op-amp NSC LMC660, a Maxim MAX232 RS232 level shifter, and the Motorola MPXS4100A absolute pressure sensor.

Removable module containing Motorola absolute pressure sensor MPXS 4100A, 10nF and 100nF ceramic and 10uF tantalum capacitors.


Circuit Design CDP-RX-01 wireless receiver, 434 MHz, up to 7.5 kb/s, uni-directional

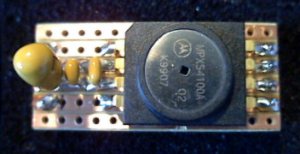

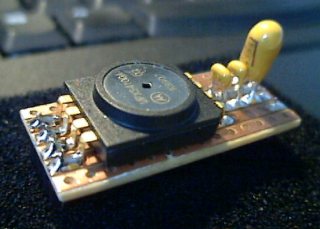

Top view of removable pressure sensor module.


Circuit design CDP-TX-01 wireless transmitter, 434 MHz, up to 7.5 kb/s, uni-directional


Technical Data of Wireless Transmitter and Receiver   [Toc] [Top]

Additional information is available at Circuit Design Inc. -> Products

Data sheets of wireless transmitter and receiver:

Oscillator type:   Crystal
Frequency:   433.920 MHz, 434.075 MHz (Europe)
458.650 MHz (United Kingdom)
Frequency stability:   +/- 2.5 kHz (-10° up to +55° C)
HF channels:   single (fixed channel)
Range:   up to 1000 m (free distance, line of sight)
Baud rate (specified):   300 - 4800 baud
Bit rate (measured at short distance):   up to 7500 bits/s
Operating conditions:   -10° up to +60° C
Type approval:   I-ETS 300 220 / Germany, France, Switzerland, Sweden, UK, Holland, Austria, EMC
HF power output:   10 mW +/- 3 dB @ 50 Ohm
Modulation:   FM narrow band
Start-up time:   30 ms
Input signal type:   digital, 5 Volt
Deviation:   2.5 kHz
Supply voltage:   5.5 - 10 Volt
Power consumption:   18 mA typ.
Dimensions:   36 x 26 x 10 mm
Weight:   9.8 g
Type:   double superheterodyne, crystal oscillator
Sensitivity:   -120 dBm (12 dB/SINAD, CCITT filter)
Selectivity:   +/- 5 kHz @ -6 dB
Demodulation:   FM narrow band
Distortion:   < 5 % @ 1 kHz
Output signal type:   digital, open collector
Other outputs:   RSSI and AF
Supply voltage:   4.5 - 14 Volt
Power consumption:   10 mA typ.
Dimensions:   50 x 30 x 7.5 mm
Weight:   19 g


Remarks   [Toc] [Top]

A lot of people have asked me where I got the Motorola absolute pressure sensor from.

Please see the section Sensor Ordering Information below.

By the way, Motorola distinguishes the sensor characteristics, feature set and package type by the sensor name, so you can also get 4100 sensor types similar to mine with different naming, e.g. MPXT 4100A or PPXA 4100A:

See Motorola Sensor Selector Guide at the section Documents below.


Evaluation Board   [Toc] [Top]

The Circuit Design wireless transmitter and receiver are not necessary to use the evaluation board, since there exists a direct RS232 link to the PC.

Initial Test Setup   [Toc] [Top]

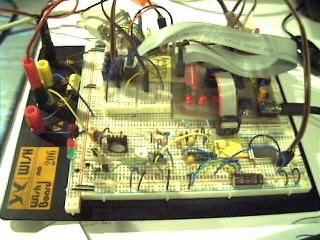

Test setup to check the initial concept

An initial test setup for checking the mixed signal design: A significant problem was the digital noise in the analog circuitry supply voltages. Finally the noise could be minimized by splitting up the power supplies to three independent sources: one digital power supply voltage, one for the sensor and A/D converter, and one supply with slightly higher voltage for the operational amplifiers of the filter stages. The above test setup contains no wireless transmitter, the data is directly transmitted to the computer using the RS232 protocol and a MAX232 level shifter.
In this setup, I have used the LMC660 / LMC662 low-power rail-to-rail quad operational amplifiers for the fourth order Chebyshev filter stages.


PCB Evaluation Board   [Toc] [Top]

Moving from the test board to the first PCB, I have only made slight adaptations in the analog part of my design: I have altered the filter characteristics from Chebyshev to Butterworth - but as a consequence, I had to replace the LMC660 operational amplifier by a LM324 type, due to oscillating filters. Conclusion: In the analog world, nothing runs properly if it has not been tested.

If someone knows a good single supply, low-power, rail-to-rail operational amplifier with clean and linear output characteristics in the entire input range, please let me know! The LMC660 is exactly specified this way, but showed up a really bad non-linear characteristic in the upper input range. Bob Krech suggested the LMC6064 precision quad OP amplifier with pin-for-pin replacement for the LM324.

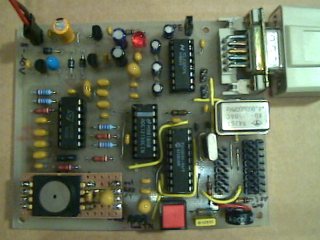

PCB-based evaluation board
suitable for first field measurements

Description of the above PCB layout

The PCB-based evaluation board consists of analog circuitry at the left side and digital components at the right side of the board. In the upper left corner are the three independent power supplies (5 V analog, 6.8 V analog, 5 V digital), all served from one battery (8 - 10 V). The evaluation board contains further the active Butterworth filter stages built of one LM324 (left side), the NSC ADC12130 A/D converter (center), the PIC 16F84 microcontroller (at right from A/D converter), a dot LCD display and a PORTB connector (lower right corner), a direct RS232 interface with MAX232 level shifter (upper right corner), and an interface for the wireless transmitter allowing for first field measurements (bottom center). The system owns two oscillators. A 4 MHz crystal oscillator provides the conversion clock for the A/D converter, and a separate 4 MHz crystal for the microcontroller allows to increase processor performance easily if necessary. This setup provides two A/D converter input channels: Channel 0 is already used for the pressure sensor, but channel 1 can be used freely, e.g. for voltage surveillance of the R/C receiver battery. If two channels are not sufficient, this system can easily be upgraded to eight channels by integrating the NSC ADC12138 A/D converter. The LCD connector and the RS232 interface serve only for evaluation and debugging purposes in this setup. Finally, the noise characteristics of my approach are very promising!

Although this board is now ready, a suitable R/C plane - my Piper Cherokee - has to be finished first for 'air evaluation'...

Schematics of Evaluation Board   [Toc] [Top]

Latest version 1.03 from April 23rd, 2001:

Top.pdf   (8.5 kB)
Sensor.pdf   (4.0 kB)
Filter1.pdf   (6.5 kB)            (replaced LMC660 with LM324, due to oscillating filters)
Filter2.pdf   (6.3 kB)            (replaced LMC660 with LM324, due to oscillating filters)
Digital.pdf   (12.6 kB)
LCD.pdf   (4.6 kB)              (corrected some errors)
RS232.pdf   (7.7 kB)
PowerSupply.pdf   (8.9 kB)

Available Microchip PIC Assembler Code   [Toc] [Top]

Main File HEX Files
View assembler source code:    alti_tx.html
Download assembler source code:    alti_tx.asm   (16.7 kB)
The above program needs additional include files (modules) to get successfully assembled: m_bank.asm, m_wait.asm, m_rs096.asm
For those, who are not familiar with interfacing a PIC to the RS232 using a MAX232:   RS232-Interface.pdf   (9.7 kB)


Software   [Toc] [Top]

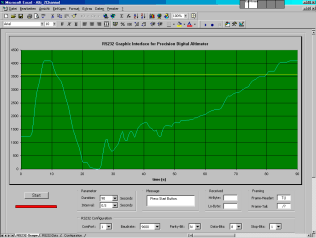

An Excel worksheet has been used to visualize the captured data.
With the NSC ADC12130 A/D converter, there are two channels available.

Download Excel worksheet and drivers:  (203 kB)

Measurements   [Toc] [Top]

I've done some measurements to see whether LSB toggling is sufficient low using the Excel RS232 data capture interface. All measurements have been carried out at room temperature (without any temperature compensation) and without moving the test board. The test period has been one hour with adequate warm-up time for the sensitive analog circuitry (pressure sensor, A/D converter and op-amp).

Note: Because the entire design is laid out very sensitive in order to get a high resolution (in the range of one meter), the accumulated drift could also originate from natural barometric variations.

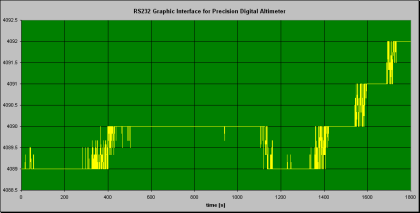

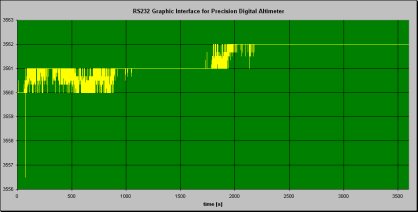

Test setup: Drift of 2 bits during one hour (with a single spike).

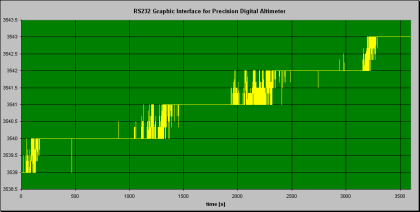

Test setup: Drift of 4 bits during one hour.


Test setup: Drift of 3 bits during half an hour. The strange curve comes possibly from temperature variations.

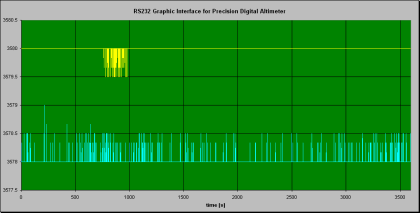

PCB-based evaluation board: The yellow curve represents the pressure sensor, the blue curve is only a test voltage for comparision purposes. The pressure sensor behaves quite stable in conjunction with the PCB setup, only ½ LSB toggling during one hour. The comparision voltage - originating from a simple voltage divider - is even more toggling. This toggling may result from a voltage just reaching the A/D converter LSB threshold.


Further Information   [Toc] [Top]

Documents   [Toc] [Top]

Data sheet of Motorola Absolute Pressure Sensor Series MPX4100A: MPX4100A  (PDF, 117 kB)
Motorola Sensor Selector Guide (Acceleration, Pressure, and Smoke): SensorSelectorGuide  (PDF, 166 kB)
Noise considerations for integrated pressure sensors: AN1646  (PDF, 153 kB)

Data sheets of wireless transmitter and receiver:

Sensor Ordering Information   [Toc] [Top]

A lot of people have asked me, where they could get the Motorola absolut pressure sensor from. I bought it from years ago, but now, these sensors may occassionally not be available there. Don't ask me where you can get them elsewhere, I don't know...

As of 08.04.2005, there was one pressure sensor model from Motorola available at

Ordering#: 150110 - 13
Price: about 25.00 Euro/pc.

Other Circuits and Utilities   [Toc] [Top]

NSC ADC12130 Test Interface
Dot-matrix LCD Interface
RS232 Interface
Excel Data Capture
Automatic Table Generator for MPLAB Assembler

Links   [Toc] [Top]

RC data logger V2.5 with altitude capture
German page about a self-made RC data logger using PIC 16F84 and MPXS 4100A absolute pressure sensor.
Previous version with nice Palm interface pictures: RC data logger V1.x

Future Steps   [Toc] [Top]

This work is currently on hold due to limited time.


Last updated: 2005/11/09
